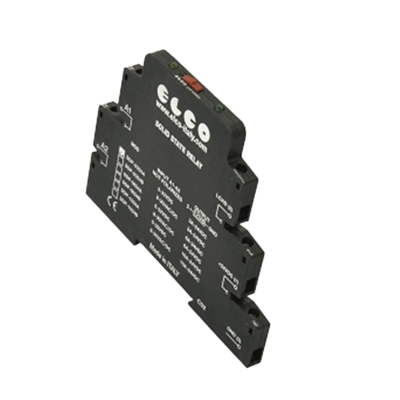

SDP / SAP 系列固态继电器，带电子保护

El.co  DIN 导轨安装固态继电器
应用于：食品和饮料 |注塑成型 |包装行业 |固态继电器

Non polarized input
Led input voltage
Signaling led for electronics protection intervention
Rated operational current up to 3-6-10A DC or 4A AC
Short circuit protection(Reset through switch for 10A model
output), over load, over current, over temperature protections
with restart for DC model.
Internal over temperature protections with restart for AC model
Exclusion input signal through switch
Zero crossing commutation for models with AC voltage output
or instantaneous for DC voltage output models
Output voltage from 12 to 275 VAC or from 5 to 36V DC
2500V input-output insulation
Output protection from voltage peak higher than 36V for DC model
RC filter protection for AC models
Solid state relays breadth 6,5mm
Drawbar for Din bar
